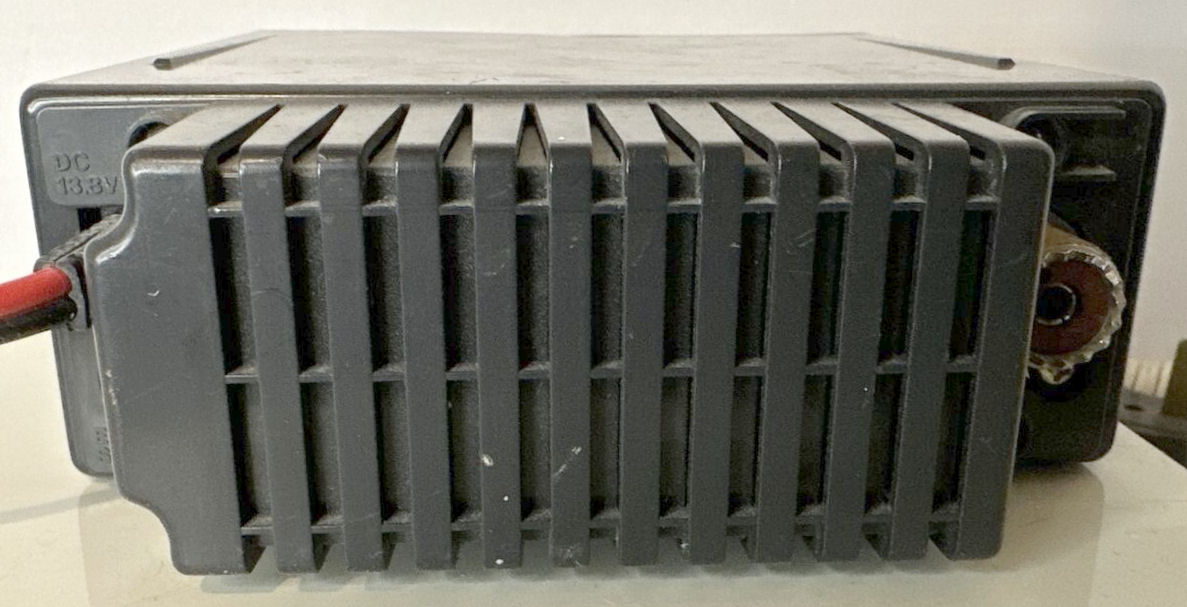

Icom IC-M56
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
RX: 156-163 MHz
TX: 156-157.5 MHz |
| Modes: |
FM |
| RF Power Output: |
HI: 25 W
Low: 1 W |
| Voltage: |
13.8 VDC |
| Current Drain (at 13.8 V DC): |
TX: Max 5.5A
RX: ?? |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions: WHD |
140 x 55 x 155 mm |
| Weight: |
1.1 kg |
| Manufactured: |
N/A |
| Other: |
Dual watch |
| Related Documents: |
User Manual (2.25 MB) |
 |
